8 Symmetries of a Regular Thirty-one Zone Star

8  Symmetries of a Regular Thirty-one Zone Star

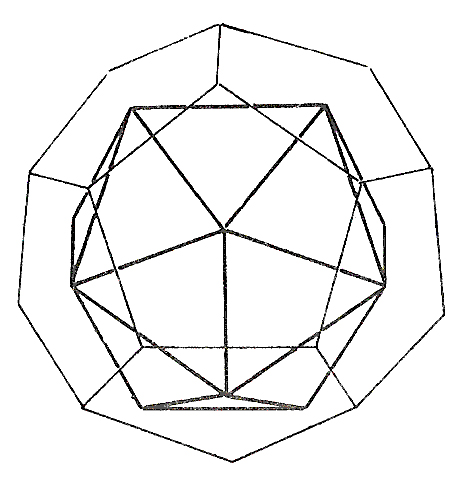

2The dodecahedron and the icosahedron are duals of each other - the vertices of one match the face midpoints of the other and vice versa.

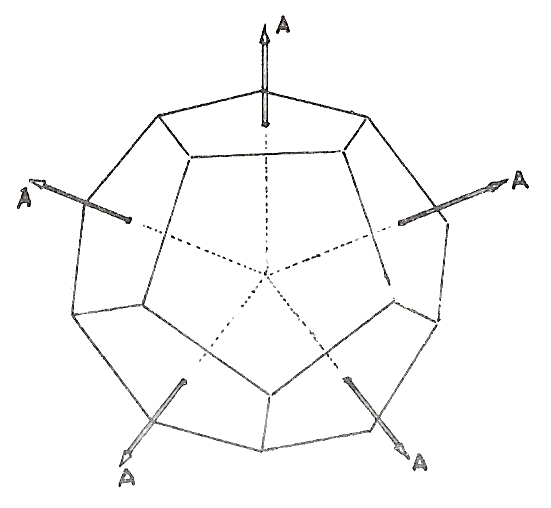

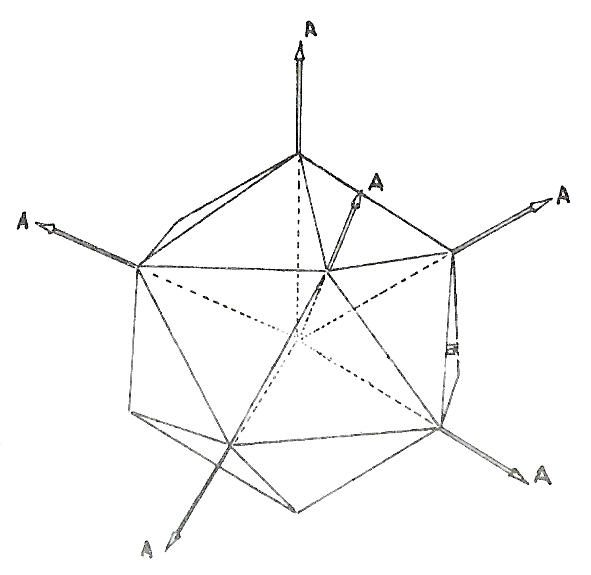

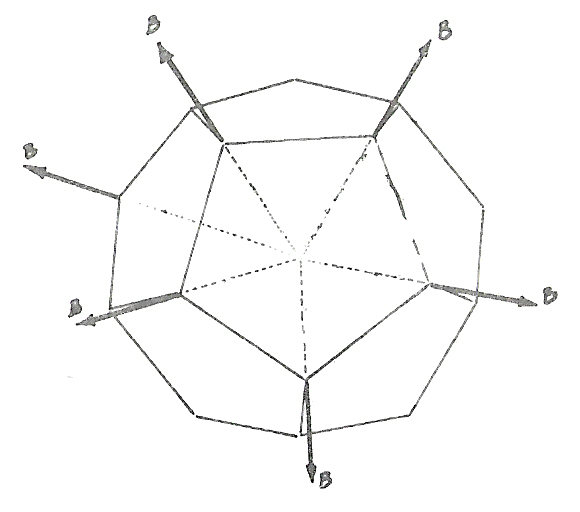

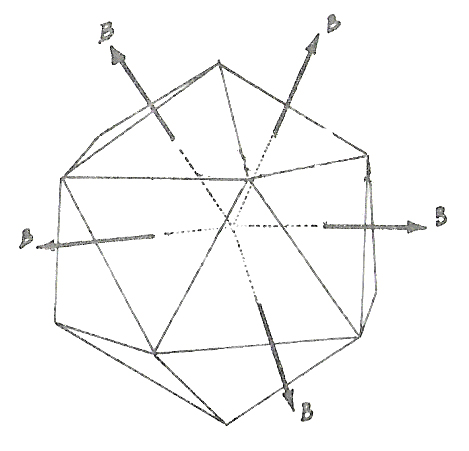

3 The ten B lines of the thirty-one zone star go through the vertices of the dodecahedron or, equivalently, the face midpoints of the icosahedron while the six A lines go through the vertices of the icosahedron or, equivalently, the face midpoints of the dodecahedron.

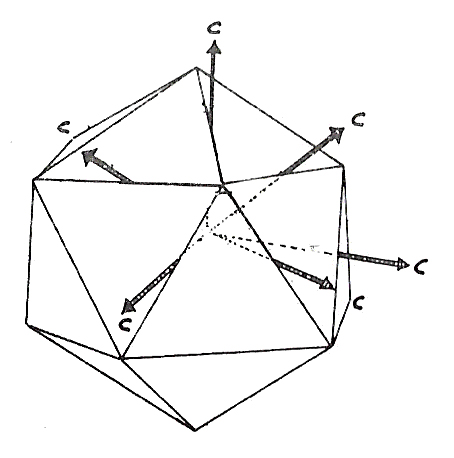

4 The fifteen C lines go through the edge midpoints of either the icosahedron or the dodecahedron.

5 The middles of edges are commonly midway between vertices or face midpoints and C lines bisect all angles between A lines and three of the four kinds of angles formed between B lines.

6 In examining angles between lines, we are also examining equators. There are six different equators and slicing through them, we form the R, S, T, V , X, and Y sections.

7 All pairs of lines lie in one of-these six kinds of sections.

8 See Sections for a discussion of different angles and the polygons they form.

9

10PIC

11

12PIC

13

14PIC

15

16PIC

17

18PIC

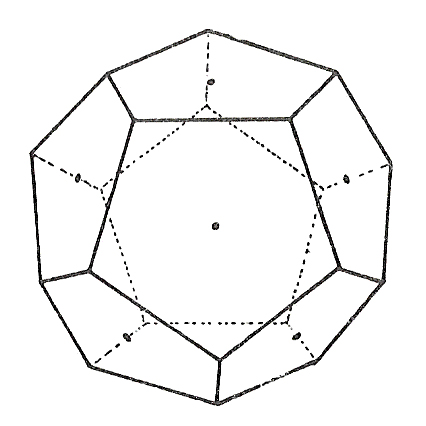

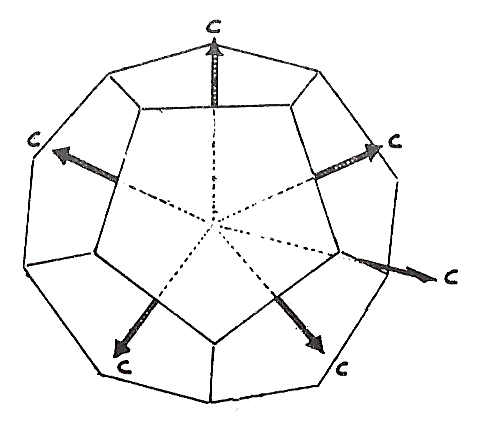

Figure 8.94: Thirty-One Zone Star: Dodecahedron

19

20PIC

21

22PIC

23

24PIC

25

26PIC

27

28PIC

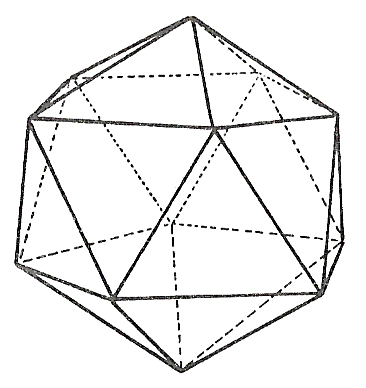

Figure 8.95: Thirty-One Zone Star: Icosahedron
