2 Zonohedra

2.1 What are Zonohedra?

2A zonohedron is a convex solid, all of whose faces are polygons with edges in equal and parallel pairs.

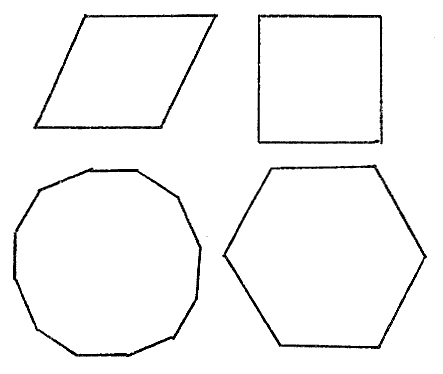

3 These are possible faces for zonohedra:

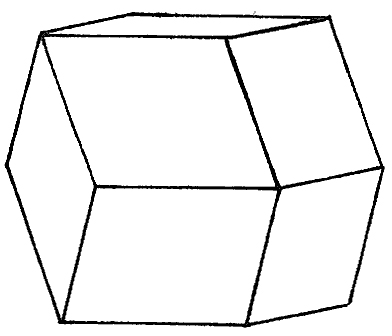

5 These are zonohedra:

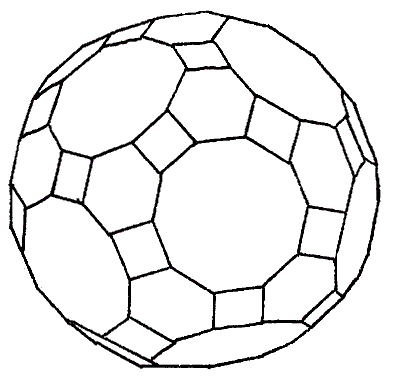

Figure 2.15: Great rhombicosidodecahedron or Truncated icosidodecahedron

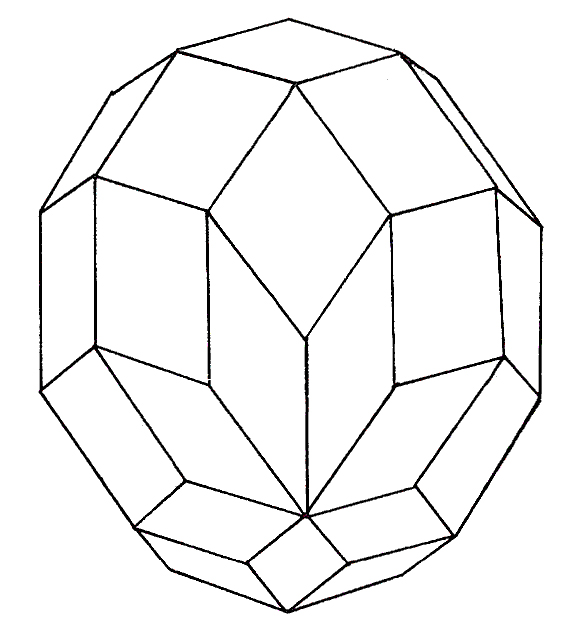

12 A zone of edges is a band of parallel edges which circles the solid. Every edge belongs to a zone.

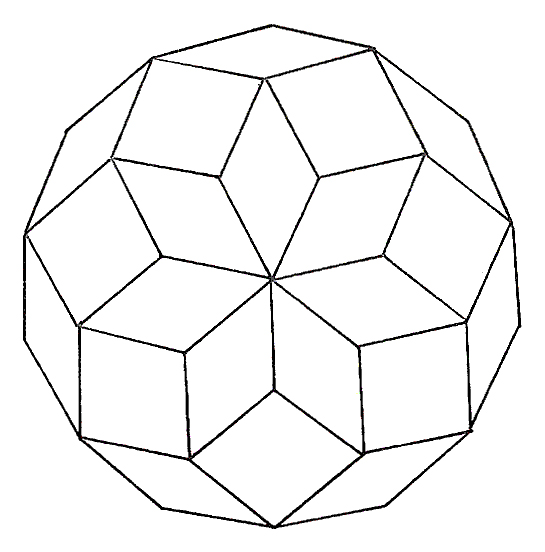

Figure 2.16: Seven-Zone Polar Zonohedron

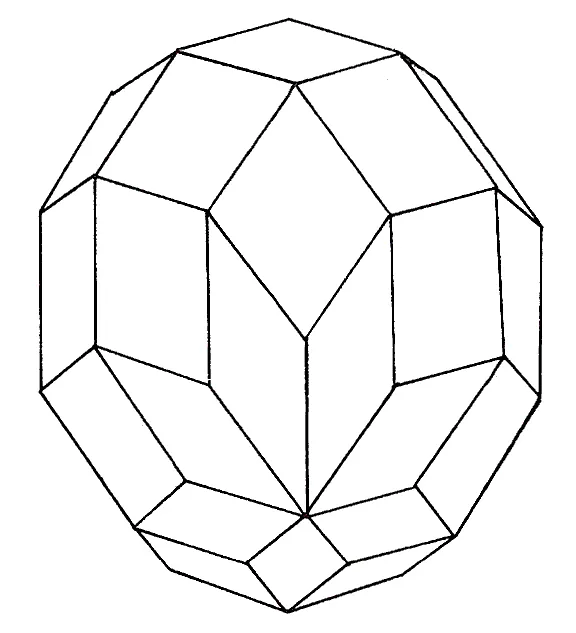

Figure 2.17: Polar Zonahedron from CHH Franklin’s drawing

2.2 Face Planes of Zonohedra

15A plane is defined by two lines. A six-zone figure has six different lines; 1, 2, 3, 4, 5, 6. How many pairs can we form with six objects?

1,2	2,3	3,4	4,5	5,6
1,3	2,4	3,5	4,6
1,4	2,5	3,6			= 15
1,5	2,6
1,6

Table 2.1: Pairs of Six Objects

17 Algebraic expression:

X = (n-)(n-−-1) 2

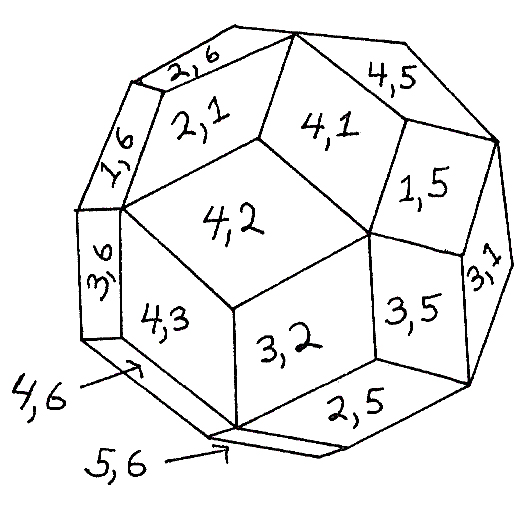

Figure 2.19: Rhombic Triconntahedron, labeled zones

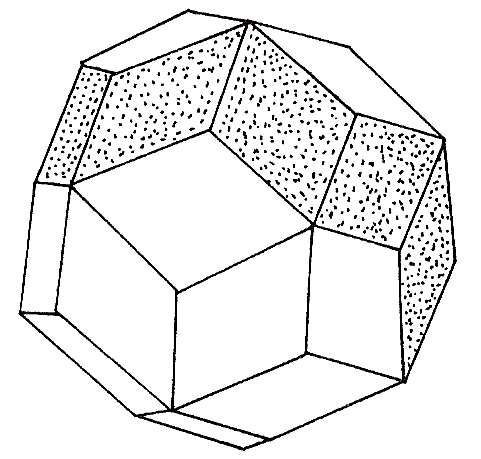

21 Rhombic Triacontahedron with face planes labeled with numbers of the zones which form the plane.

22 There are then 15 more faces on the other side which add up to the 30 faces of the Triacontahedron.

23 The ten-zone system can form 10×-9-

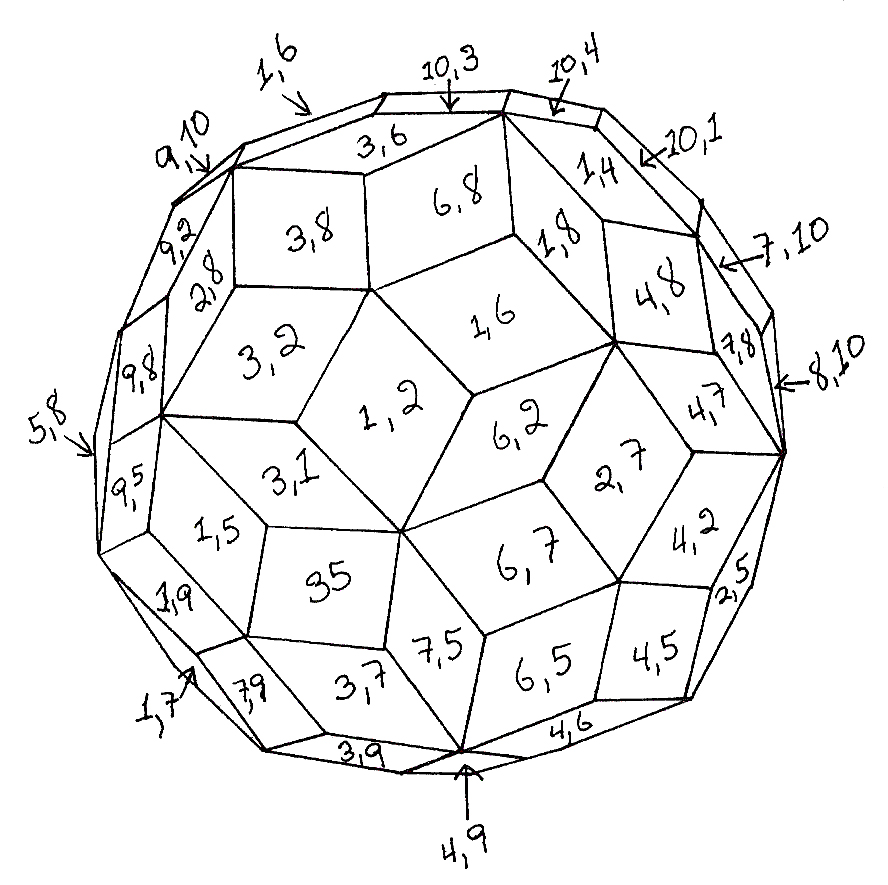

2 × 1 = 45 different planes.

24 This figure is the enneacontahedron with its faces marked:

26 The equation is for the number of planes, and if we wish to find the total number of faces for the polyhedron, including the back side, multiply the number of different planes by 2, and this equals (n)(n − 1).

27 The formula (n)(n-−-1)
2 is true for the number of planes that can be formed with the different zones provided that no more than two lines lie in one plane. These collections of lines associated with zonohedra are called the stars of the zonohedra. A star is called non-singular if no three of the lines are coplanar.

28 If three lines of the star lie in one plane, then the zonohedron associated with the star has a pair of hexagons. If more than three lines lie in one plane, then there are facets to the zonohedron with corresponding more edges—octagon, decagon, etc.

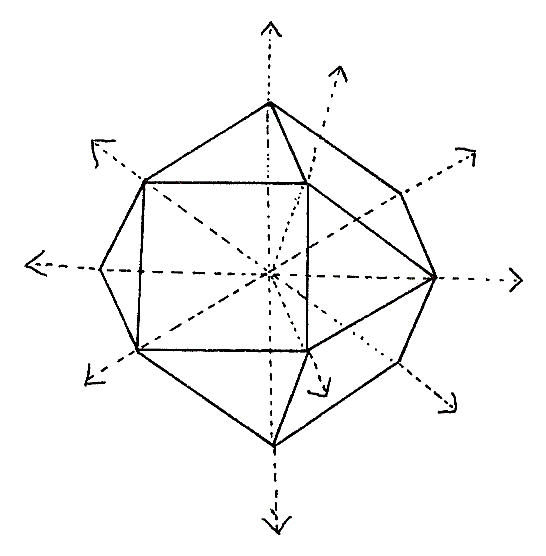

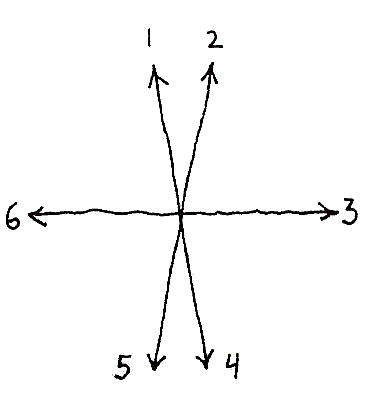

Figure 2.21: Singular Star, through vertices of cuboctahedron.

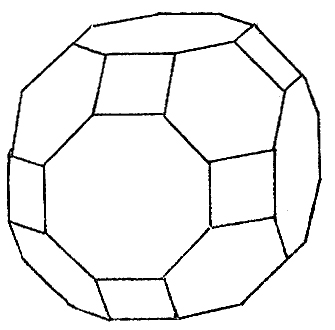

Figure 2.22: Associated zonohedron, truncated octahedron

2.3 Section Stars and Face Planes

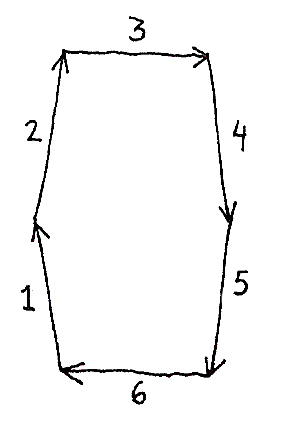

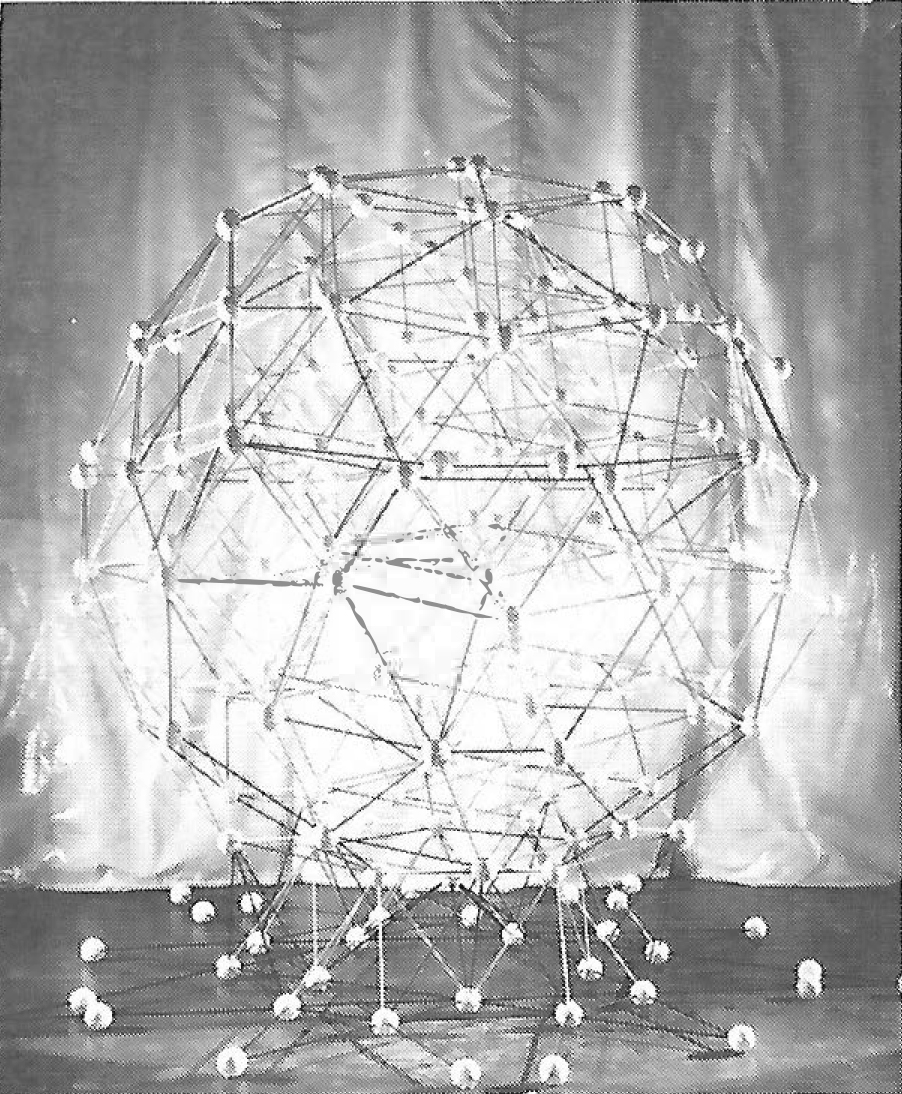

31The zonohedron that has its edges parallel with the lines of the 31-zone star is a huge figure with faces—two faces for each of the 121 sections—one face on each side of the figure. The face corresponding to a particular section is formed by the lines of the star following each other head to toe around in a complete polygon. Consequently, the 242 sided zonohedron associated with the 31 zone star has:

12	regular decagons	T sections
30	irregular dodecagons	R sections
60	irregular hexagons	S sections
20	regular hexagons	V sections
60	rectangles	X sections
60	rectangles	Y sections
242

Table 2.2: Faces of a 31 Zone Star

2.4 Division of Zonohedra into Parallepiped Cells

36 Every zonohedron can be divided into component parallelepiped cells. Every set of three different lines form one cell. In the case of the four-zone rhombic dodecahedron 2.25, there are then:

4 4⋅3 ⋅2 C 3 = 3⋅2-⋅1-= 4 cells.

(2.1)

38 The sides of the component parallelepiped cells are necessarily the same as the sides of the complete figure.

40 The triacontahedron subdivides into:

6 ⋅5⋅4 C63 = -------= 20 cells. 3 ⋅2⋅1

(2.2)

42 The rhombic triacontahedron divides into 10 acute and 10 obtuse parallelepipeds.

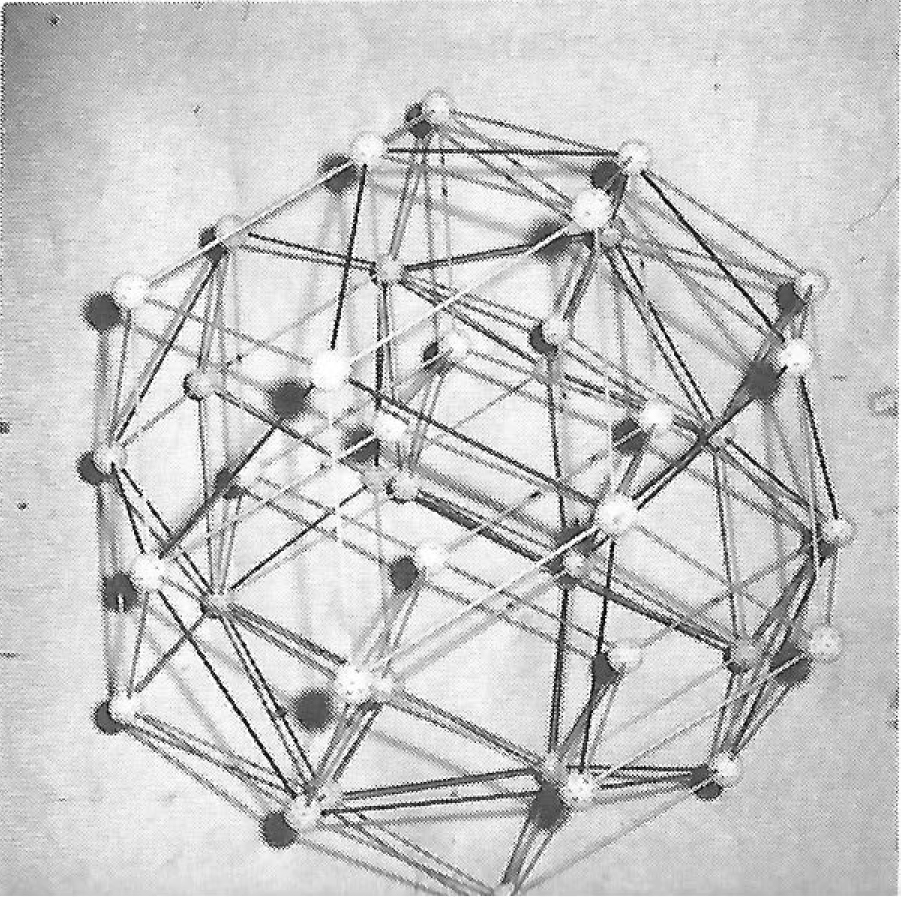

44 The enneacontahedron subdivides into

10⋅9 ⋅8 C103 = --------= 120 cells. 3 ⋅2⋅1

(2.3)

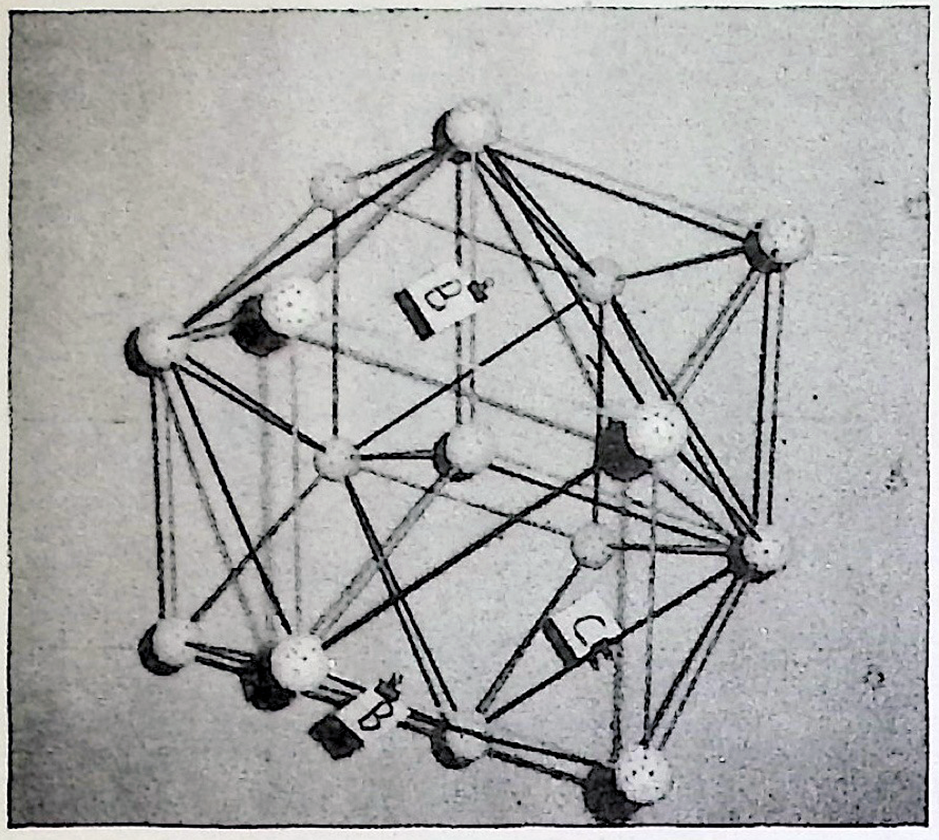

46 There are five different kinds of cells. With one kind of diamond, there are only two kinds of cells possible, but the enneacontahedron has two kinds of diamond faces allowing for more types of cells.

47 There are:

10	A cells	6 fat diamonds		acute
20	B cells	6 fat diamonds		obtuse
30	C cells	4 fat diamonds	2 skinny diamonds	acute
30	D cells	4 skinny diamonds	2 fat diamonds	acute
30	E cells	2 skinny diamonds	4 fat diamonds	obtuse
120	cells

Table 2.3: Cells of the Enneacontahedron
